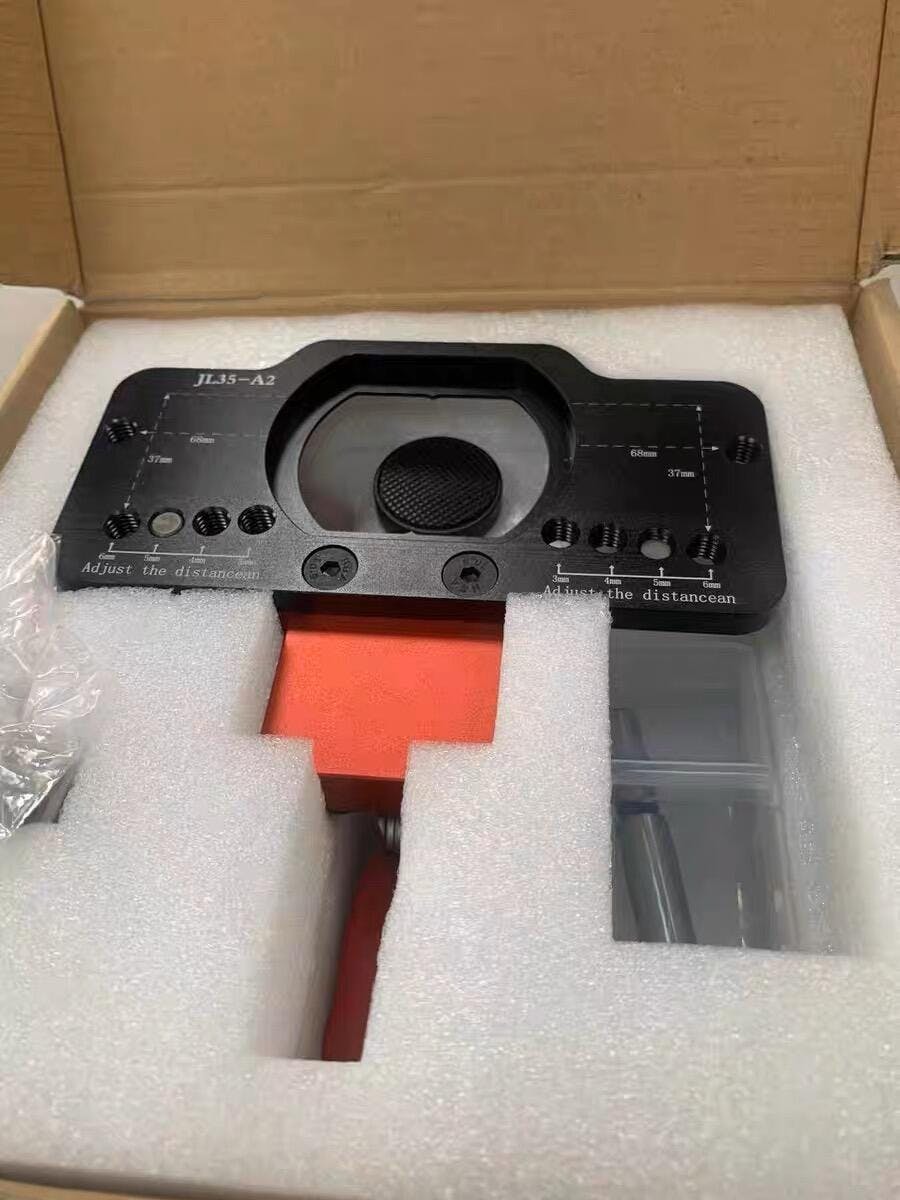

35mm / 1.4-inch Hinge Hole Positioner Hinge Jig with 4 Adjustable Hole Margins, Edge Lock Design, and for Various Panel Thicknesses

Features & Benefits

• Precise and Accurate Drilling. The door hinge jig features an upgraded dual-axis drilling set, ensuring stable and high concentricity hole punching for precise and accurate results. The produced hinge holes are smooth and burr-free.


• Adjustable Hole Margins. The tool offers 4 adjustable hole margins to accommodate different specifications of 35mm hinges. The distances can be set to 3mm, 4mm, 5mm, or 6mm.


• Suitable for Various Panel Thicknesses. The bottom nut of the tool is adjustable, allowing it to accommodate a range of panel thicknesses. It can handle panel thicknesses from 0.47 inches to 0.98 inches (12mm to 25mm), and be used for cabinets, doors, wardrobes, bookcases, windows, and vanities.


• Protection for Panel Surface. The tool includes a rubber pressure head that prevents damage to the surface of the panels during drilling.


• Edge Locking Design. The edge locking design ensures the distance from the punched hole to the panel edge is fixed, no more worries about inconsistent positions on both sides.

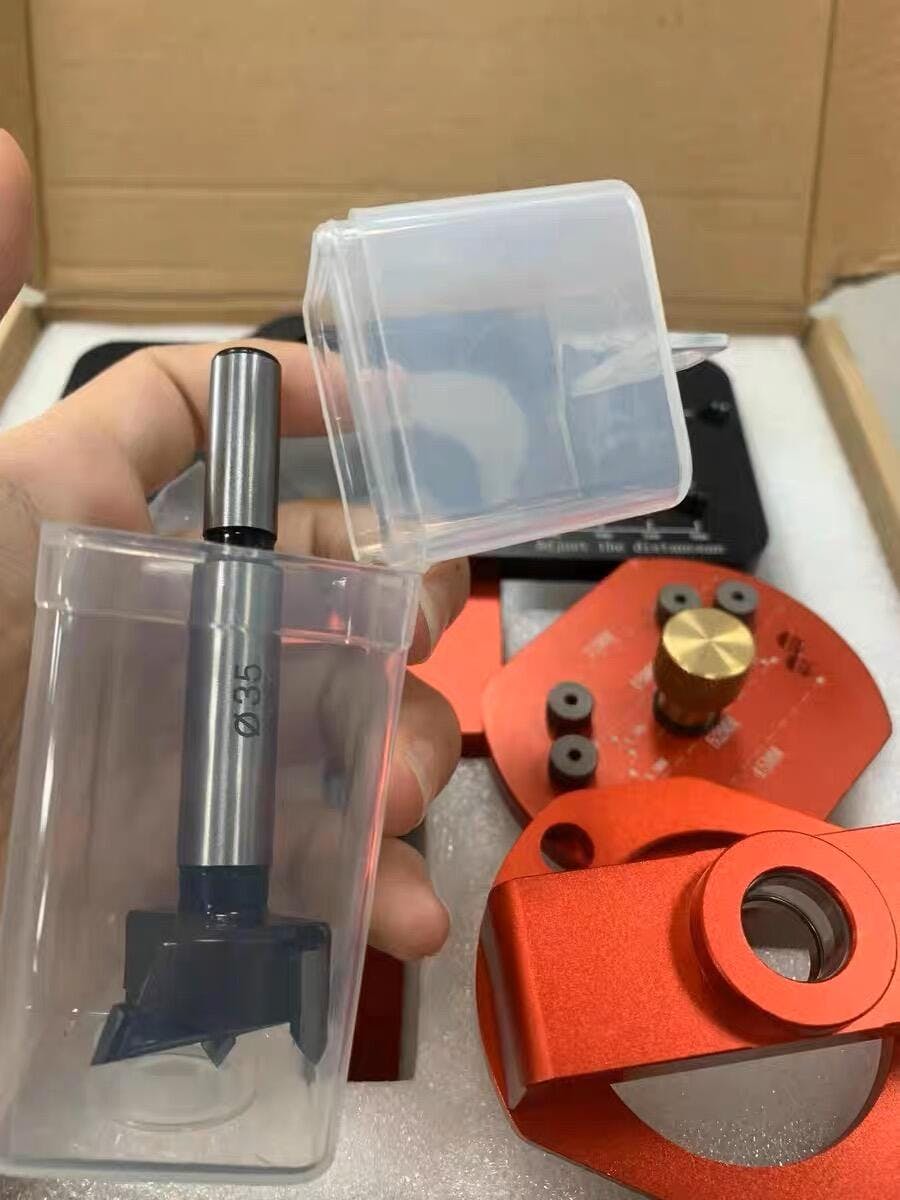

• Comprehensive Toolset. The product package includes the main door hinge jig, auxiliary plates for hinge cups and screw holes, a 35mm drilling tool, a limiting ring, a 2mm drill bit, a hex wrench, and an open-end wrench, providing all the necessary tools for efficient installation.
